BarnRack 2.0

Corrugated Roof Mounting System
Low Cost
No Leak
Quick Install

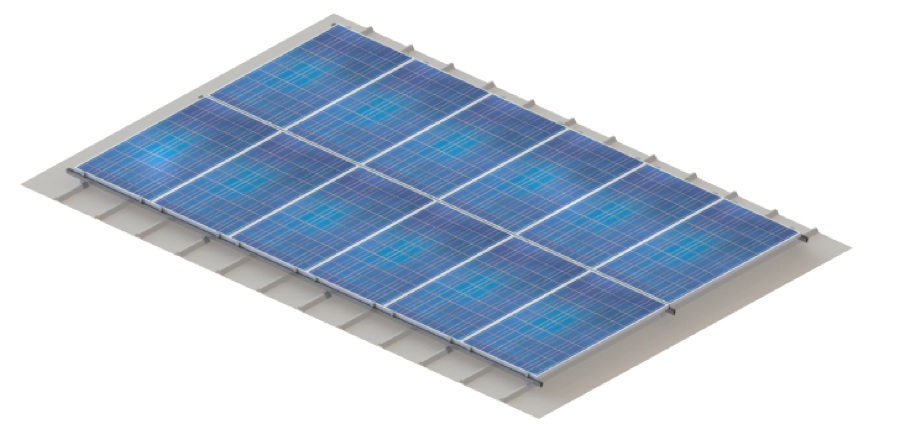

BARNRACK 2.0 is a corrugated-roof mounting solution, adding adaptability and flexibility for both fully-railed and shared-rail solar installations. The lightweight aluminum rails couple with corrugated roof connections providing a rigid solar platform and a design backed with leak-proof attachments.

BarnRack 2.0's adaptable design is complimented by its simple installation and feature-rich mounting rails. The KB10 rails offer integrated wire management, side mounting, and common fasteners for a clean and fast installation.

BarnRack 2.0
Highlights
1
Rails pre-cut to custom lengths
2
Factory applied sealant tape for maximum protection against leaks
3
Low hook per panel ratio reduces number of roof penetrations
BarnRack 2.0
Features
  • EPDM gaskets provide a secure, watertight attachment
  • Integrated wire management
  • Configured for fully-railed and shared-rail installations
  • Side-mounted with T-bolts
  • Low overall system weight
  • 25-year standard product warranty, extended warranty available

Distribution Load: 1.5 – 3 lbs/ft²

Inclinations: Flush

Wind Speed: Up to 190 mph

Material: 6000 series aluminum

Module Type: All standard size framed PV modules

Wire management: Built into KB10 rail

Orientation: Landscape, Portrait

Rail Length: 13′, 20′

Configurations: Shared-Rail, Fully-Railed

Roof Pitch: 0°- 45°

Roof Type: All corrugated metal roofs

Module Spacing: Customizable based on project requirements

Grounding method: ETL Certified KB Konnect clamps

Roof Clearance:Up to 8″ (Bottom of module to roof)

Span Lengths: Dependent on project locations, 3′- 8′

Please check back later.

We started using KB Racking’s mounting systems in 2011. Since then, we have built 8 projects amounting to over 1MW of solar energy. We continue to chose KB Racking because we can count on their team to meet the custom needs of our projects and we can count on their product to last.

Michael Kornahrens
President
,
Advanced Green Technologies
Recent Projects
Coatesville, PA
Project Size:
452.2kW
Completion date:
05/2017
Hadley, MA
Project Size:
142.3kW
Completion date:
05/2017
