AeroGrid East West

Engineered for Savings. Optimized for Efficiency.
Green Zone Clamped
Low Cost
Minimal Ballasting

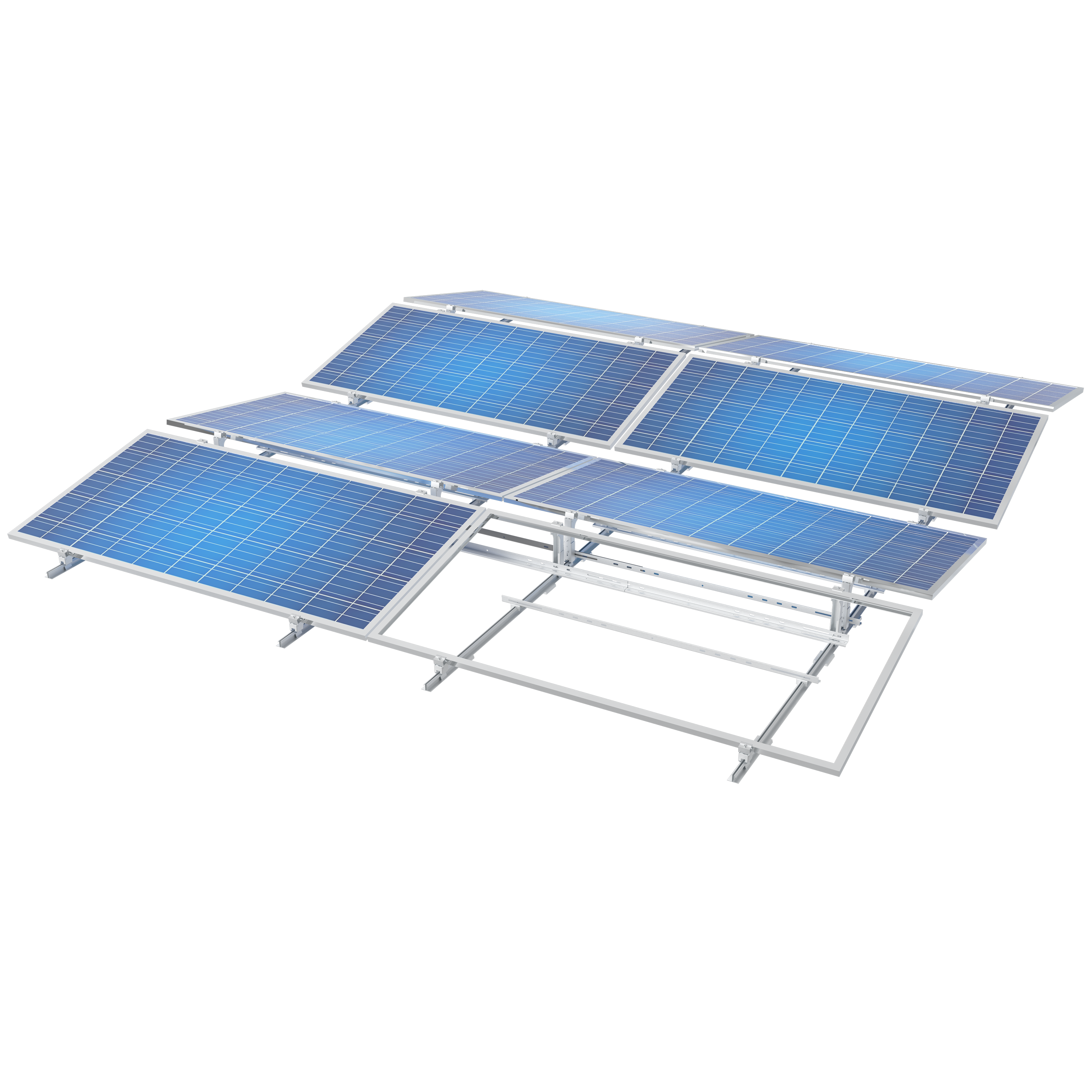

Get ready to maximize your roof's potential with the AeroGrid E/W System - an evolution of your already favourite South-facing AeroGrid system that redefines efficiency and versatility. Designed with an east-west orientation, it transforms your roof into a high-performance, space-optimized solar array. Engineered with precision, this system features click-in components that allow for effortless, tool-free installation. Its non-penetrating, ballast-minimized design protects your roof while meeting stringent wind and snow load requirements.

The AeroGrid E/W System offers flexible module compatibility, adjustable row spacing, and a 100% green-zone clamping approach to maximize energy production while minimizing shading. Integrated clinch nuts and studs speed up assembly, reducing labor costs and installation time.

Backed by a 25-year standard warranty, it's a solution built for high performance reliability.

‍

No items found.
AeroGrid East West
Highlights
1
Click-In Components for Easy Tool-Less Installation
2
100% Green Zone Clamping
3
Minimal Ballast Requirements for Weight Challenged Roofs
Features
Technical Specifications
Documents
Videos
AeroGrid East West
Features
  • Grid Based System with Low Ballast Requirements
  • Best-in-Class Price per Watt
  • Green Zone Clamping (Suitable for High Snow and Wind Loads)
  • Non-Penetrating Design Prevents Damage to Your Roof
  • Integrated Clinch Nuts & Studs for a Faster Installation
  • Click-in Components for Easy Tool-Less Installation
  • Flexible Order of Operations for Installation
  • 25-year Standard Warranty

Module Tilt: 10 Deg

Module Orientation: Landscape

Module Compatibility: 990+ mm Width, 1700+ mm Length, 30+ mm Thickness

Row Spacing: Up to 5” (Peak-to-Peak), up to 8” (Valley-to-Valley)

Material: G90 Galvanized Steel Components, 6000 Series Aluminum Clamps, Stainless Steel Hardware

Roof Type Compatibility: All Flat Roofs

Ballast Block Size: Nominal 4” x 8” x 16” (32lbs.) and/or 2” x 8” x 16” (16 lbs.)

Roof Attachment: Ballasted, Hybrid or Fully Anchored

Attachment Compatibility: OMG, U-Anchor (Others Available Upon Request)

Roof Pitch: Up to 5 Degrees

Building Height: Any

Wind Speed: Up to 180 mph

Exposure Categories: B, C, or D

Wind Tunnel: Boundary Layer Wind Tunnel Tested by RWDI

Certifications: UL2703, UL3741, CSA T.I.L. A-40:2020

Module Spacing: 0.5”/12.7mm

Grounding: One Grounding Lug Required Per Array

No items found.
Please check back later.
,
Click HERE to submit a quote request and receive custom pricing and order information for AeroGrid East West solutions, or call us today.
