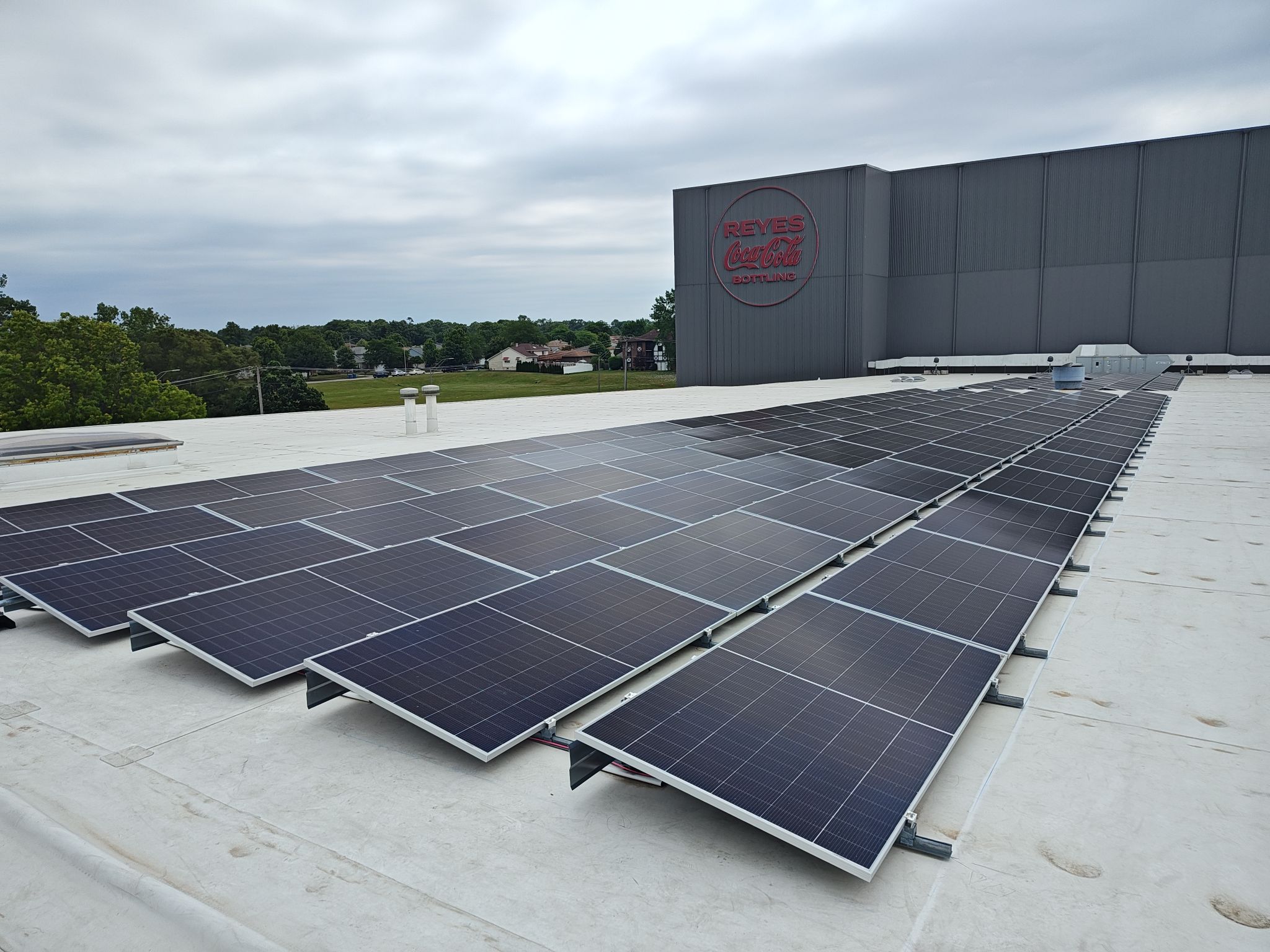

AeroGrid
Aerogrid is our latest flat roof racking system that is designed for the highest load rating in snow load regions across North America. The grid-based design features an integrated rail for windshield and ballast to reduce number of components. Offered in 5- and 10-degree tilt variations, the snap-in components provide an easy tool-less installation.
Aerogrid is a green-zone clamping system that offers more panels per area and less racking per panel which makes it low cost, and more universal for the varying panel sizes, making it one of the most versatile mounting systems on the market. We have chosen to use a landscape orientation as the panels cast ½ the shade compared to portrait, which means less interrow. The standard system can accommodate PV module variability between 990+mm width & 1700 + mm length.
AeroGrid
Highlights
AeroGrid
Features
- Grid Based System with Structural Rigidity (Low Ballast Requirements)
- Green Zone Clamping (Suitable for High Snow and Wind Loads)
- Customizable Row Spacing (Increase Module Density on Roof)
- Non-Penetrating Design Prevents Damage to Your Roof
- Integrated Clinch Nuts and Studs for a Faster Installation
- Click-in Components for Easy Tool-Less Installation
- Flexible Order of Operations for Installation
- 25-year Standard Warranty
Module Tilt: 5 Deg, 10 Deg
Module Orientation: Landscape
Module Compatibility: 990+ mm Width, 1700+ mm Length, 30+ mm Thickness
Row Spacing: Customizable; Standard 5 degree spacing ~8.99” (Inter-Row Spacing), standard 10 degree spacing ~15”/~17” (Inter-Row Spacing)
Material: G90 Galvanized Steel Components, 6000 Series Aluminum Clamps, Stainless Steel Hardware
Roof Type Compatibility: All Flat Roofs
Ballast Block Size: Nominal 4” x 8” x 16” (32 lbs.) and / or 2” x 8” x 16” (16 lbs.)
Roof Attachment: Ballasted, Hybrid or Fully Anchored
Attachment Compatibility: OMG, U-Anchor (Others Available Upon Request)
Roof Pitch: Up to 5 Degrees
Building Height: Any
Wind Speed: Up to 180 Mph
Wind Tunnel: Boundary Layer Wind Tunnel Tested by RWDI
Certifications: UL 2703, UL 3741, CSA T.I.L. A-40:2020
Module Spacing: 0.5” / 12.7mm
Grounding: One Grounding Lug Required Per Array
